TS-D1000-CU Master Control Unit
Original price was: ฿11,200.00.฿9,348.00Current price is: ฿9,348.00.
รายละเอียดสินค้า

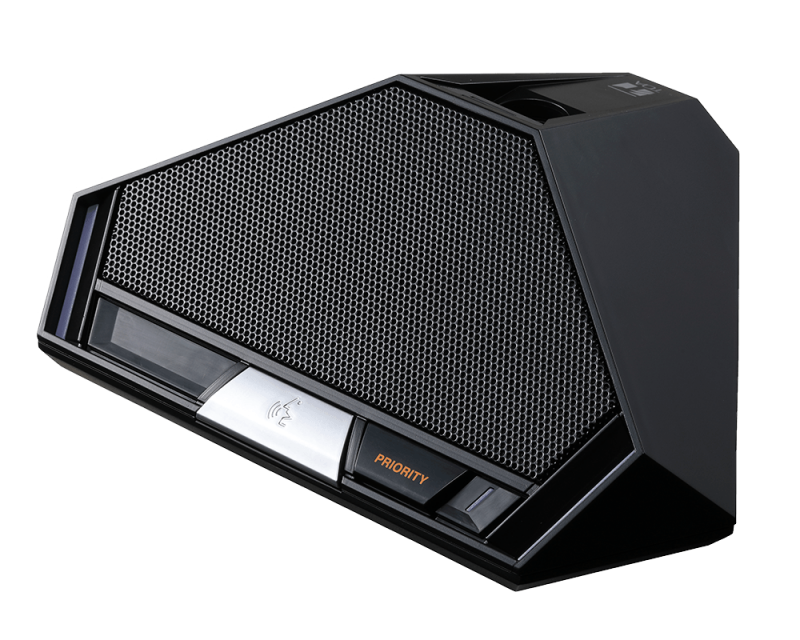

TS-D1000-CU Master Control Unit
The TS-D1000-CU Chairman Unit of the TOA’s Digital Conference System can be instantly used by simply connecting it to the TS-D1000-MU Master Control Unit using CAT5e STP LAN cables. Option microphones, TS-D1000-M1 or TS-D1000-M2 comes in 2 different length to fit every application’s need.
Power Source 24 V DC (supplied from the TS-D1000-MU Master Control Units (option),
TS-D1000-SU Sub Control Units (option),
TS-D1000-EX Extension Units (option))
Power Consumption 1.5 W or less
Signal to Noise Ratio 65 dB or more (A-weighted)
Input Microphone terminal: XLR-3-31 type
Output Monitor speaker: 8 Ω, 0.4 W

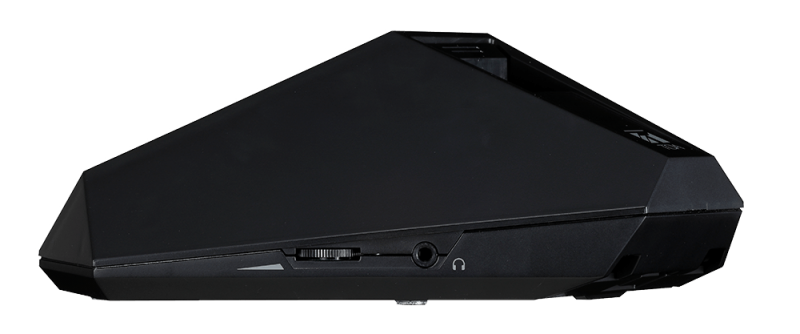

Earphone: ø3.5 mm mini Jack (3P:monaural) × 2
Speaker Output 75 dB SPL
Connecting Terminal RJ45 connector x 2
LED Indicator Power Indicator, Speech indicator
Function Speech function, Priority speech function, Earphone volume control (x2)
Operating Temperature 0 ℃ to +40 ℃
Operating Humidity 90 %RH or less (no condensation)
Finish Case: ABS resin, black, matte finish, paint
Speaker Net: Steel plate, black, matte finish, paint
Dimensions 208.9 (W) × 71.3 (H) × 160.5 (D) mm
Weight 880 g
Option Standard Microphone: TS-D1000-M1
Long Microphone: TS-D1000-M2
