MX-6224D Digital Mixer Amplifier 240W x 2
Original price was: ฿45,000.00.฿37,557.00Current price is: ฿37,557.00.
รายละเอียดสินค้า

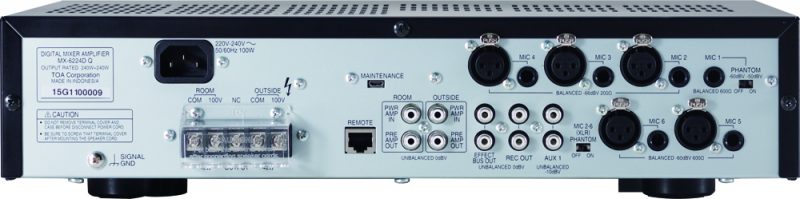

MX-6224D Digital Mixer Amplifier 240W x 2
The MX-6224D, Digital mixer amplifier 2×240W, is designed for 2 zones Public address system that suitable for middle sized mosques application.
Power Source 220 V – 240 V AC, 50/60 Hz
Power Output 240 W × 2 channels (100 V, 42 Ω, rated output)
Power Consumption 100 W (according to IEC60065), 570 W (at rated output, both channels)
Amplification System Class D, Output transformerless galvanic isolated output
Frequency Response 50 Hz – 20 kHz, ±3 dB (at 1/3 rated output, rated load, from power amplifier input)
Distortion 1 % or less (at 1 kHz, 1/3 rated output power)
Input MIC 1: -50 dB (*1) (24 V phantom powered)/-60 dB (*1) (phantom power OFF)
600 Ω, electronically-balanced, φ6.3 mm phone jack (3P:balance)
MIC 2 – 4: -66 dB (*1), 200 Ω, electronically-balanced, XLR-3-31 type and φ6.3 mm phone jack (3P:balance) (either one usable)
MIC 5 – 6: -60 dB (*1), 600 Ω, electronically-balanced, XLR-3-31 type and φ6.3 mm phone jack (3P:balance) (either one usable)
AUX 1: -10 dB (*1), 10 kΩ mixed monaural, unbalanced, RCA pin jacks (1 pair)
AUX 2: -20 dB (*1), 10 kΩ mixed monaural, unbalanced, φ3.5 mm mini jack (3P:stereo)
Power amplifier input: 0 dB (*1), 10 kΩ, unbalanced, RCA pin jacks (1 each for ROOM and OUTSIDE outputs)
Output Speaker output: 2 zones, 100 V (42 Ω), galvanic isolated balanced, M4 screw terminal
Recording output: 0 dB (*1), 600 Ω monaural, unbalanced, RCA pin jacks (1 pair)
Effect bus output: 0 dB (*1), 600 Ω monaural, unbalanced, RCA pin jacks (1 pair)
Preamplifier output: 0 dB (*1), 600 Ω monaural, unbalanced, RCA pin jacks (1 each for ROOM and OUTSIDE outputs)
Phantom Power ON/OFF switchable for MIC 1 and XLR-3-31 type connectors of MIC 2 – 6
Signal to Noise Ratio 60 dB or more (All volume controls: min.)
Controls 6 Microphone volume controls, 2 AUX volume controls, 1 ROOM output switch, 1 ROOM volume control, 1 OUTSIDE output switch, 1 OUTSIDE volume control, 1 Effect control (0 % to 100 %) of Effect bus, 1 Effect preset type selection switch (DOME/HALL/PLATE/DELAY), 1 Effect Room size/Delay time selection switch (L/M/S/OFF), 1 Effect output selection switch (OFF/ON), 1 MIC 5-6 effect switch, 1 Low EQ control (±15 dB, 80 Hz) for MIC 1 – 6, 1 Mid EQ control (±15 dB, 2.5 kHz) for MIC 1 – 6, 1 High EQ control (±15 dB, 12 kHz) for MIC 1 – 6, 1 Speaker EQ (TC-631M, TC-651M) switch for OUTSIDE output, 1 Speaker EQ (BS-1030B, BS-1030W) switch for ROOM output, 1 Power switch, 1 Phantom switch for MIC 1, 1 Phantom switch for MIC 2 – 6 (XLR-3-31)
Indicators SLEEP indicator
Output Level meters (2 points, -20 dB and 0 dB) for ROOM and OUTSIDE
Protection indicators for ROOM and OUTSIDE amplifiers
Output indicators for ROOM and OUTSIDE
EFFECT indicator for MIC 1 – 6
Ventilation Natural air cooling
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)”
Operating Humidity 35 % to 80 %RH (no condensation)
Dimensions 420 (W) × 99.8 (H) × 360.6 (D) mm (16.54 × 3.93″ × 14.2″)
Installation Method Desktop mount, Rack mount with mounting bracket MB-25B (option)
Weight 6.1 kg (13.45 lb)
Finish Front Panel: Aluminum, black, alumite
Case: Steel plate, black, paint
Accessory Power supply cord …1, Sticker for Arabic indication …1
Option Remote controller: RC-03
Power amplifier :P-2240
Multichannel power amplifier: DA-250FH
Dynamic microphone: DM-1300
Lavalier microphone: EM-410
Horn speaker: TC-631M, TC-651M
Universal speaker: BS-1030B, BS-1030W
Rack mounting bracket: MB-25B
Perforated panel: PF-013B
