F-1000BT   Wide-dispersion Speaker System 15W

เป็นลำโพงอเนกประสงค์แบบสองทางที่เน้นคุณภาพเสียงที่ดีกำลังขับที่สูงสามารถใช้งานได้หลากหลายเหมาะสำหรับงานดนตรีและงานประกาศ

Enclosure Bass-reflex type

Rated Input 15 W (high impedance)

Power Handling Capacity Continuos pink noise: 30 W (low impedance)

Continuos program: 90 W (low impedance)

Rated Impedance 8 Ω

100 V line: 670 Ω (15 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W)

70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)

Sensitivity 87 dB (1 W, 1 m) at installation in 1/2 free sound field

Frequency Response 85 Hz – 20 kHz, -10 dB at installation in 1/2 free sound field

Crossover Frequency 5 kHz

Directivity Angle Horizontal: 90゜, Vertical: 90゜

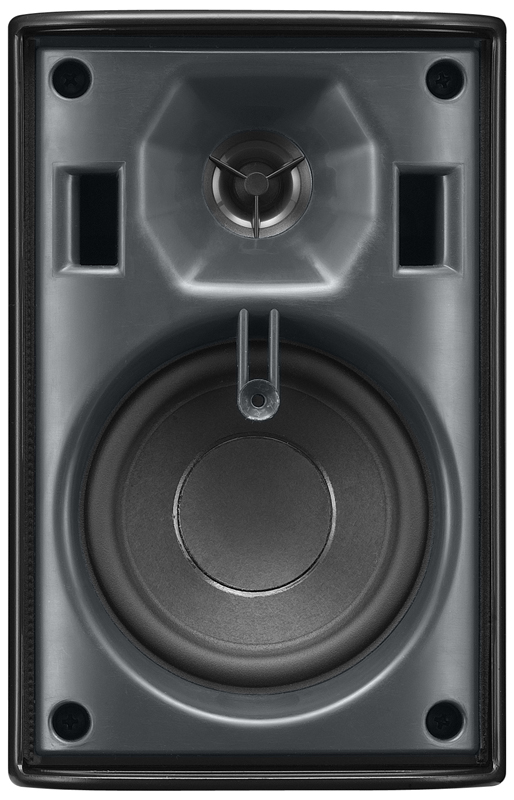

Speaker Component Low frequency: 10 cm (4″) cone-type

High frequency: Balanced dome tweeter

Input Terminal Push-in terminal

Finish Enclosure: HIPS, black

Punched net: Surface-treated steel plate, black, paint

Joint bracket, wall bracket: Steel plate, t1.6, black, paint

Speaker bracket: Die-cast aluminum, black, paint

Dimensions 130 (W) × 202 (H) × 131 (D) mm (5.12″ × 7.95″ × 5.16″)

Weight 2 kg (4.41 lb) (including the supplied brackets)

Accessory Speaker bracket…1, Joint bracket…1, Wall bracket…1, Bracket fixing screw…1 set

Option Board hanger bracket: HY-BH10B,

Ceiling mount bracket: HY-CM10B (used for the horizontal speaker mounting),

Cluster bracket: HY-CL10B, Speaker stand: ST-16A
